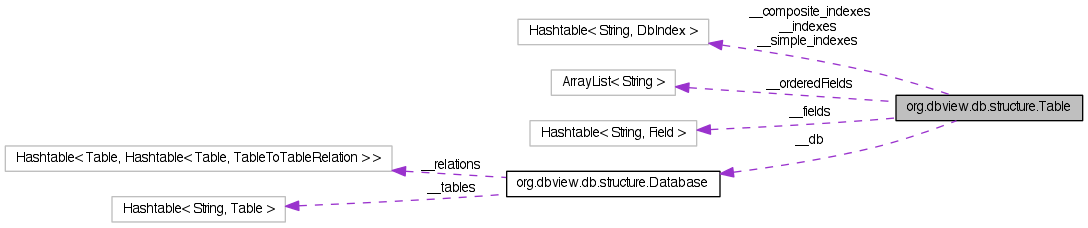

Collaboration diagram for org.dbview.db.structure.Table:

Public Member Functions
void	setIndexes (Hashtable< String, DbIndex > in_list)
Hashtable< String, DbIndex >	getSimpleIndexes ()
Hashtable< String, DbIndex >	getCompositeIndexes ()
Integer	compositeIndexCount ()
Integer	simpleIndexCount ()
String	getName ()
	Table (Database in_db, String in_name) throws org.dbview.db.structure.DatabaseException
Field	getField (String in_name)
ArrayList< Field >	getFields ()
Database	getDatabase ()
String	getDatabaseName ()
ArrayList< Field >	getForeignKeys ()
String	toString ()
Package Functions
void	addField (Field in_field) throws org.dbview.db.structure.TableException
Private Attributes
Hashtable< String, Field >	__fields = new Hashtable<String, Field>()
ArrayList< String >	__orderedFields = new ArrayList<String>()
String	__name = null
Database	__db = null
Hashtable< String, DbIndex >	__indexes = new Hashtable<String, DbIndex>()
Hashtable< String, DbIndex >	__simple_indexes = new Hashtable<String, DbIndex>()
Hashtable< String, DbIndex >	__composite_indexes = new Hashtable<String, DbIndex>()
Integer	__simple_indexes_count = -1
Integer	__composite_indexes_count = -1

Detailed Description

This class represents a table.

Author:: Denis Beurive

Remarks:: Adding a field to a table is done when a field is created.

Definition at line 40 of file Table.java.

Constructor & Destructor Documentation

org.dbview.db.structure.Table.Table	(	Database	in_db,
		String	in_name
	)		throws org.dbview.db.structure.DatabaseException

Create a table.

Parameters:

in_db	Database that contains the newly created table.
in_name	Name of the table.

Exceptions:

org.dbview.db.structure.DatabaseException

Definition at line 163 of file Table.java.

Member Function Documentation

void org.dbview.db.structure.Table.addField ( Field in_field ) throws org.dbview.db.structure.TableException [package]

Add a field to the table.

Parameters:

in_field Field to add.

Exceptions:

org.dbview.db.structure.TableException

Remarks:: This method is accessible for package's members only. Adding a field to a table is done when a field is created.

Definition at line 177 of file Table.java.

Referenced by org.dbview.db.structure.Field.Field().

Integer org.dbview.db.structure.Table.compositeIndexCount ( )

This method returns the number of indexes composed by only one index.

Returns:: The method returns the number of indexes composed by only one index.

Definition at line 132 of file Table.java.

Hashtable<String, DbIndex> org.dbview.db.structure.Table.getCompositeIndexes ( )

This method returns the list of indexes that are defined by more than one field.

Returns:: The method returns the list of indexes that are defined by more than one field.

Definition at line 111 of file Table.java.

Referenced by org.dbview.db.structure.Table.compositeIndexCount().

Database org.dbview.db.structure.Table.getDatabase ( )

Return the database that contains this table.

Returns:: The method returns the database that contains this table.

Definition at line 215 of file Table.java.

String org.dbview.db.structure.Table.getDatabaseName ( )

Return the name of the database that contains this table.

Returns:: The method returns the name of the database that contains this table.

Definition at line 224 of file Table.java.

Field org.dbview.db.structure.Table.getField ( String in_name )

Returns a field.

Parameters:

in_name Name of the field to return

Returns:: If the field, referenced by its name, exists, then the method returns it. Otherwise, the method returns the value null.

Definition at line 193 of file Table.java.

ArrayList<Field> org.dbview.db.structure.Table.getFields ( )

Return the list of all fields in the table. The returned list is ordered. The order is the order of the table's definition.

Returns:: The method returns the list of all fields in the table.

Definition at line 203 of file Table.java.

Referenced by org.dbview.databaseExporters.dot.DotFull.__createFullTableLabel(), org.dbview.databaseExporters.dot.DotMedium.__createMediumTableLabel(), org.dbview.db.structure.Table.getForeignKeys(), and org.dbview.db.structure.Table.toString().

ArrayList<Field> org.dbview.db.structure.Table.getForeignKeys ( )

Return the list of foreign keys.

Returns:: The method returns the list of foreign keys.

Definition at line 233 of file Table.java.

String org.dbview.db.structure.Table.getName ( )

This method returns the name of the table.

Returns:: The method returns the name of the table.

Definition at line 152 of file Table.java.

Referenced by org.dbview.db.structure.Field.getFullName(), org.dbview.db.structure.Field.getTableName(), org.dbview.db.structure.JgraphtTableToTableEdge.toString(), and org.dbview.db.structure.Table.toString().

Hashtable<String, DbIndex> org.dbview.db.structure.Table.getSimpleIndexes ( )

This method returns the list of indexes that are defined by only one field.

Returns:: The method returns the list of indexes that are defined by only one field.

Definition at line 90 of file Table.java.

Referenced by org.dbview.db.structure.Table.simpleIndexCount().

void org.dbview.db.structure.Table.setIndexes ( Hashtable< String, DbIndex > in_list )

Set the list of indexes.

Parameters:

in_list The list of indexes to set.

Definition at line 81 of file Table.java.

Integer org.dbview.db.structure.Table.simpleIndexCount ( )

This method returns the number of indexes composed by more than one index.

Returns:: The method returns the number of indexes composed by more than one index.

Definition at line 142 of file Table.java.

String org.dbview.db.structure.Table.toString ( )

Produce a textual representation of the table.

Returns:: The method returns a string that represents a textual representation of the table.

Definition at line 244 of file Table.java.

Referenced by org.dbview.db.structure.Database.toString().

Member Data Documentation

Hashtable<String, DbIndex> org.dbview.db.structure.Table.__composite_indexes = new Hashtable<String, DbIndex>() [private]

List of all indexes that are composed of more than one field.

Definition at line 69 of file Table.java.

Referenced by org.dbview.db.structure.Table.getCompositeIndexes().

Integer org.dbview.db.structure.Table.__composite_indexes_count = -1 [private]

Number of indexes that are composed of one field.

Definition at line 75 of file Table.java.

Referenced by org.dbview.db.structure.Table.compositeIndexCount(), and org.dbview.db.structure.Table.getCompositeIndexes().

Database org.dbview.db.structure.Table.__db = null [private]

Database that contains this table.

Definition at line 60 of file Table.java.

Referenced by org.dbview.db.structure.Table.getDatabase(), org.dbview.db.structure.Table.getDatabaseName(), and org.dbview.db.structure.Table.Table().

Hashtable<String, Field> org.dbview.db.structure.Table.__fields = new Hashtable<String, Field>() [private]

The hash table lists all table's fields.

Key: Name of the field.
Value: The field.

Definition at line 49 of file Table.java.

Referenced by org.dbview.db.structure.Table.addField(), org.dbview.db.structure.Table.getField(), and org.dbview.db.structure.Table.getFields().

Hashtable<String, DbIndex> org.dbview.db.structure.Table.__indexes = new Hashtable<String, DbIndex>() [private]

List of all indexes for this table.

Definition at line 63 of file Table.java.

Referenced by org.dbview.db.structure.Table.getCompositeIndexes(), org.dbview.db.structure.Table.getSimpleIndexes(), and org.dbview.db.structure.Table.setIndexes().

String org.dbview.db.structure.Table.__name = null [private]

Name of the table.

Definition at line 57 of file Table.java.

Referenced by org.dbview.db.structure.Table.addField(), org.dbview.db.structure.Table.getName(), and org.dbview.db.structure.Table.Table().

ArrayList<String> org.dbview.db.structure.Table.__orderedFields = new ArrayList<String>() [private]

The array contains the list of all fields listed in the order of declaration.

Definition at line 54 of file Table.java.

Referenced by org.dbview.db.structure.Table.addField(), and org.dbview.db.structure.Table.getFields().

Hashtable<String, DbIndex> org.dbview.db.structure.Table.__simple_indexes = new Hashtable<String, DbIndex>() [private]

List of all indexes that are composed of one field.

Definition at line 66 of file Table.java.

Referenced by org.dbview.db.structure.Table.getSimpleIndexes().

Integer org.dbview.db.structure.Table.__simple_indexes_count = -1 [private]

Number of indexes that are composed of more than one field.

Definition at line 72 of file Table.java.

Referenced by org.dbview.db.structure.Table.getSimpleIndexes(), and org.dbview.db.structure.Table.simpleIndexCount().

The documentation for this class was generated from the following file:

src/org/dbview/db/structure/Table.java
